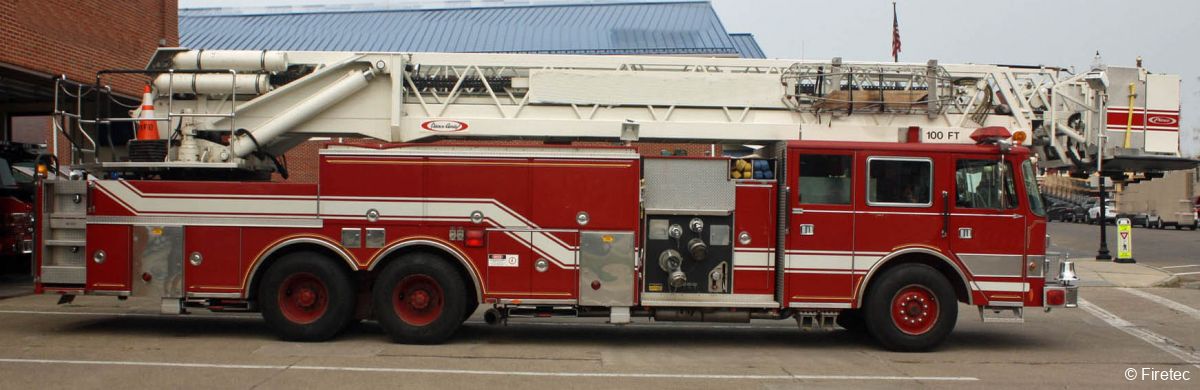

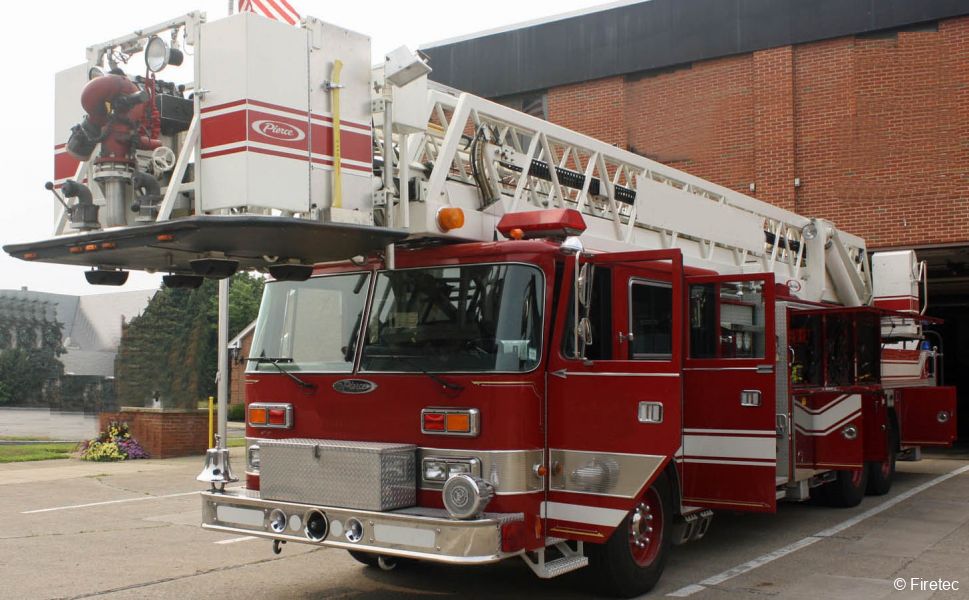

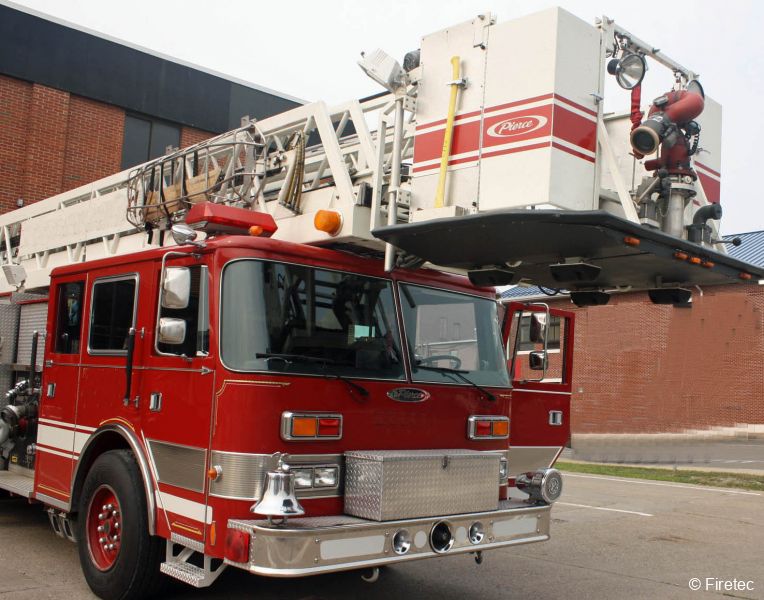

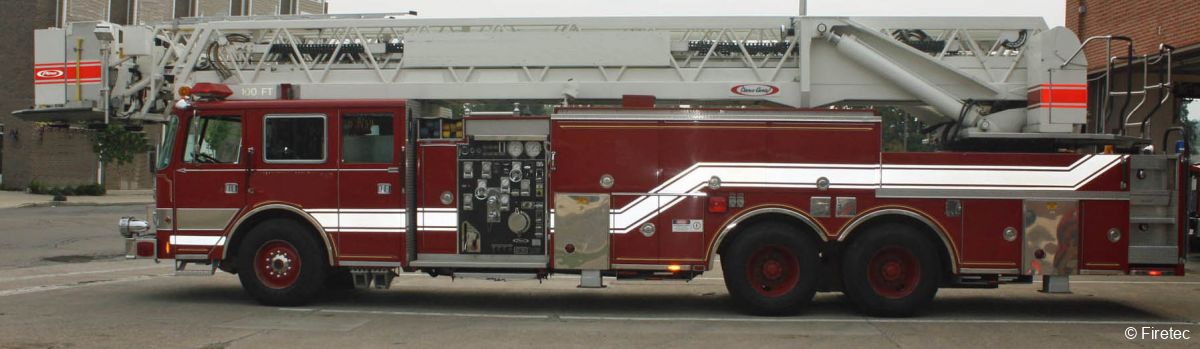

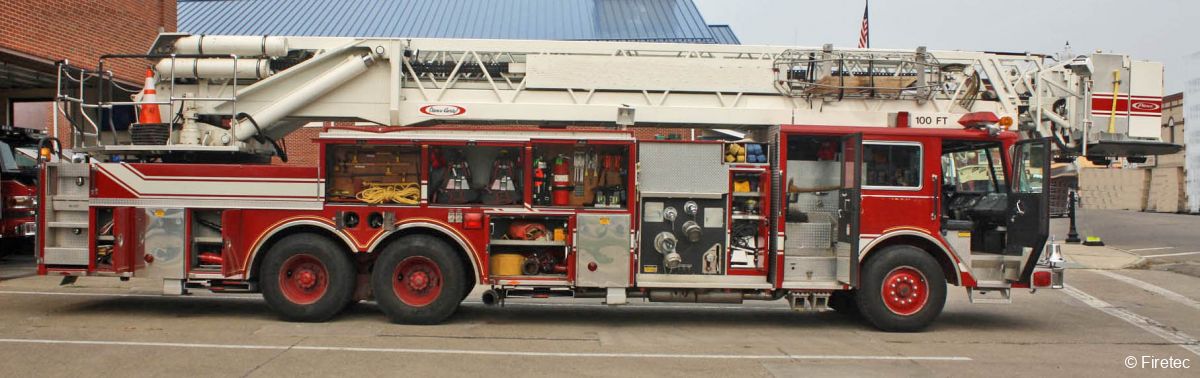

1991 Pierce Arrow
Platform
Rearmount Quint: 1500 gpm, 200 tank.
| Firetec ID: | 14048 |
|---|---|
| Truck Category | Ladder with Pump |
| Make | Pierce |
| Model Year | 1991 |
| Model | Arrow |
| Engine Type | diesel |
| Engine Make | Detroit |
| Engine Model | 8V92TA |
| Transmission | automatic |
| Gallons Per Minute | 1500 |
| Aerial Length | 100 |
| Aerial Mounting | Rearmount |
| Tank Size | 200 |
| Tank Material | 10 gauge steel |
| Height | 11'7" |
| Length | 46'7" |
| Width | 8'2" |
| Gross Vehicle Weight | 70,740 |
| Color | red/white |
| Mileage | 27,992 |
| Price | Asking $ 45,000 |
| Equipment included in the Sale | 5" waterway, 4" Elkhart valve, full compliment of ground ladders, 12', 8' & 6' pike poles, 6kw Onan generator, hand lights, safety belts for platform. Hosebed capable of carrying 2000' of 5". In '21: base rams rebuilt, hyd lines to ladder & outriggers replaced, seals in turntable box replaced. |

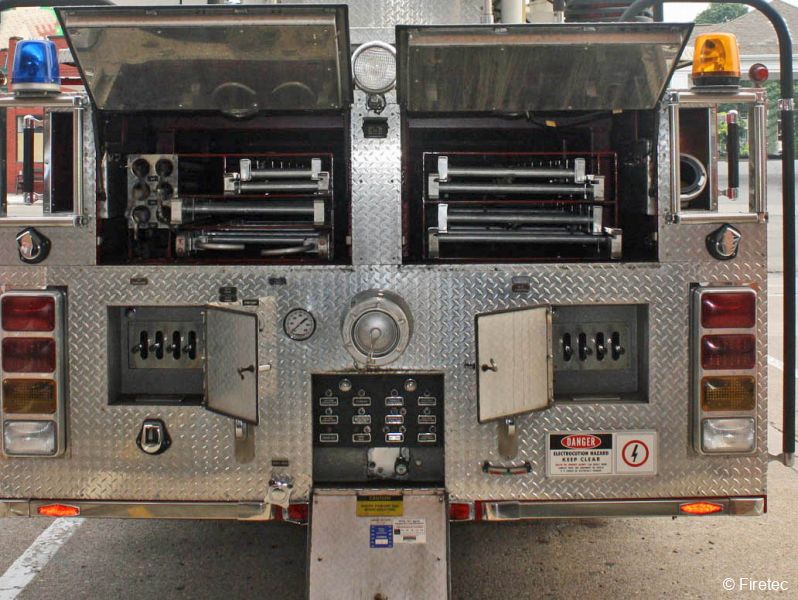

| Other Information | In '23: monitor motor & wiring replaced. Last aerial cert: Apr 2021 - will re-certify as condition of sale Last pumt test: Oct 2024, set to be re-certified Oct 2025 Discharges: (2) 2.5" drivers, (2) 2.5" & (1) 4" passenger, 2 crosslays Intakes: 2.5" & 6" on each side, 5" rear |
